Wingburg Invisible - Concealed Sliding Door System
Wingburg Invisible - Concealed Sliding Door System
SKU:WINV1185
Couldn't load pickup availability
Wingburg Invisible is a modern wall-mount concealed sliding system for wood doors, designed and made in Germany. Floating magically in front of the wall like a ghost, Wingburg Invisible is the barn door for modern interior design spaces.
Wingburg Invisible removes all visible barn door hardware. Doors with the Wingburg Invisible Concealed Barn Door Track can be floor-to-ceiling.
"We had two goals in mind: A great design and a more modern way of doing a barn door." — Holger Pollmaier, chief product designer
Door shops and millwork shops - Wingburg Invisible is easy to install using standard woodworking routers or CNC machines. Wingburg Invisible Kit fits common 1 ¾" or 2" door slabs.

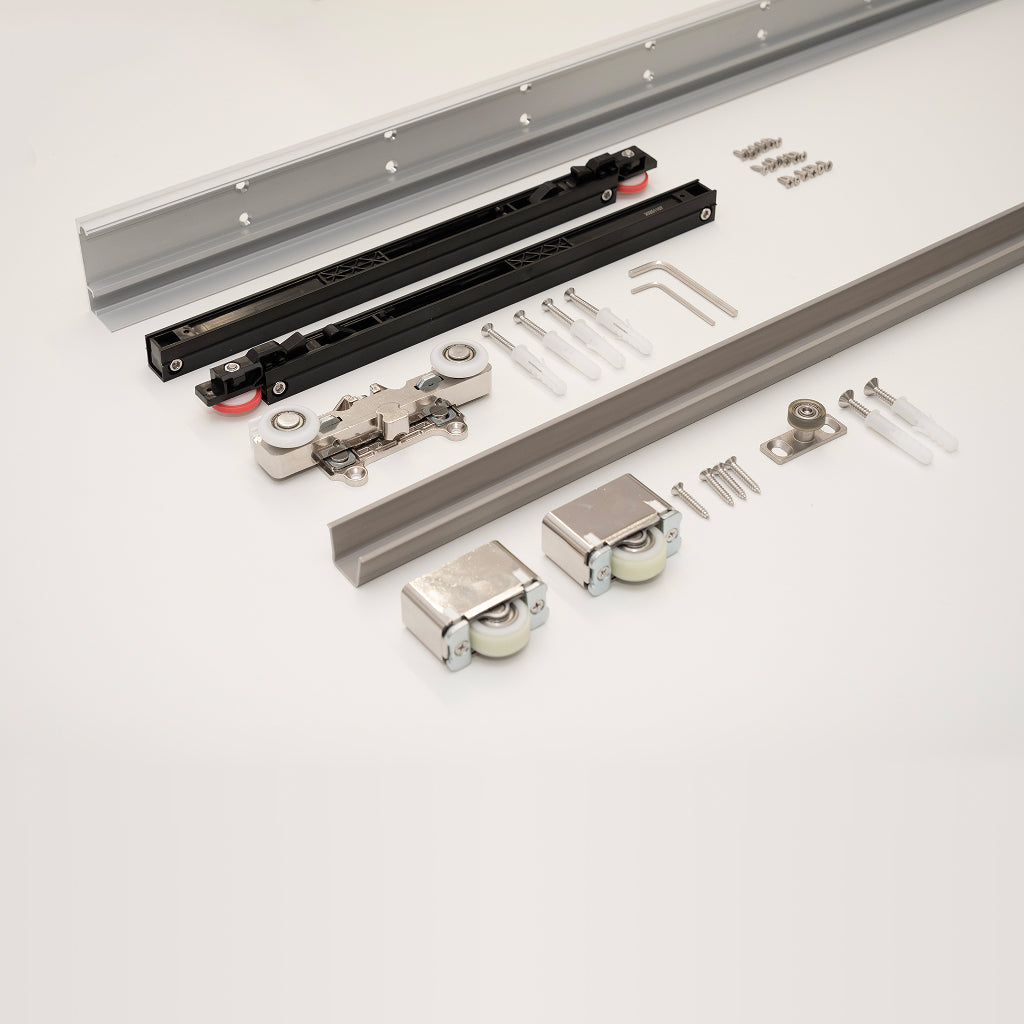

Wingburg Invisible Barn Door Hardware Set includes:
- 1x Invisible Top Running Track
- 1x Wall-Mount Roller
- 2x Soft-Close Magitech Dampers
- 1x Bottom Guide Track
- 2x Bottom Wheel Unit
- 1x Concealed Floor Guide
Made in Germany
Specifications
Specifications
Door Panel
- Min/Max width: 28-40"
- Min/Max height: No limitation
- Max weight: 132 lbs
- Min/Max door thickness: 1 ⅝″ - 2 ⅜″
- Suggested door height: Opening height + 4"
Door Panel Size vs Finished Door Opening
To allow the door to clear the opening fully:
- The door panel should be 11 ¾" wider than the finished door opening.
- The door panel should be 3 ¾" taller than the finished door opening.
Soft-Close Damper
Wingburg Invisible Soft-Close comport damper has been tested for 200.000 cycles.
Available for the following door leaf weights:
- 55 lbs (25 kg)
- 88 lbs (40 kg)
- 132 lbs (60 kg)
