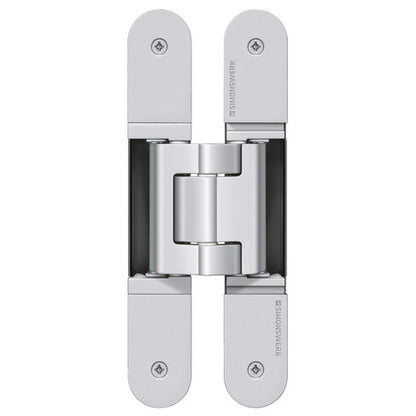

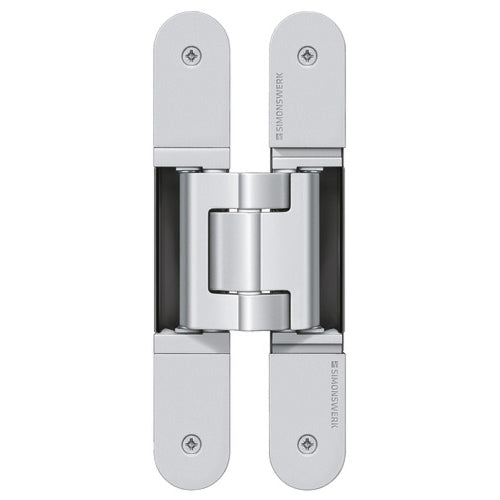

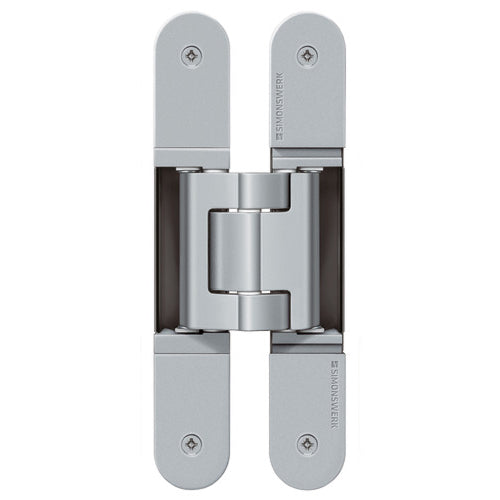

Tectus TE 540 3D Concealed Door Hinge

Replace old-school ball bearing hinges with modern Tectus TE 540 3D concealed door hinges.

SIMONSWERK TECTUS hinge TE 540 3D is designed for heavier, wider, and taller high-end interior doors.

Product features

• Completely concealed hinge system
• For wood, steel, or aluminum door panels and frames
• For flush residential and commercial doors
• Finger protection due to a small gap between door and frame
• Easily adjustable in three dimensions (side +/- 3.0 mm (0.118"), height +/- 3.0 mm (0.118"), compression +/- 1.0 mm (0.039"))
• Maintenance-free slide bearings
• UL listed for 20 minute fire door

Technical details

Documentation

Simonswerk Tectus TE 540 3D A8 PDF - Datasheet

Simonswerk Tectus TE 540 3D A8 PDF - Installation Instructions
