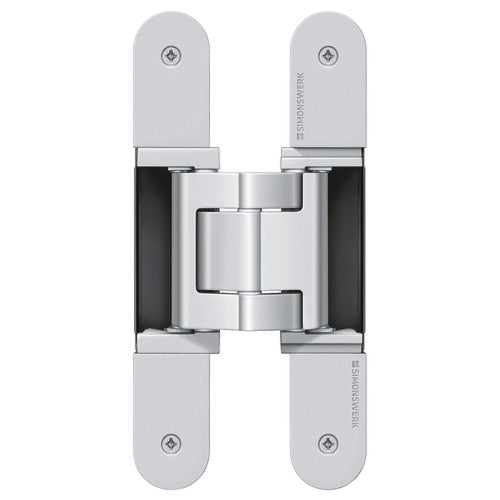

• Simonswerk TECTUS TE 540 3D A8 concealed door hinge for thicker doors with added cladding or wood panels.

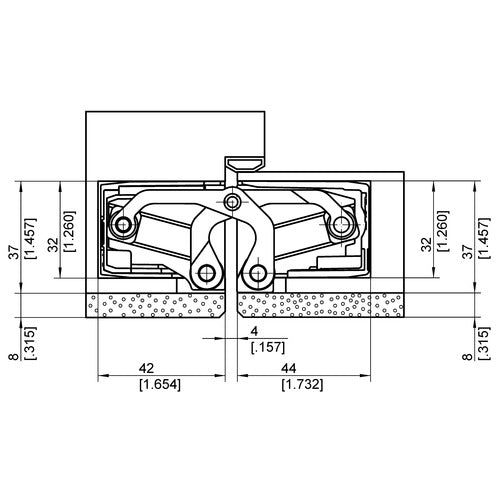

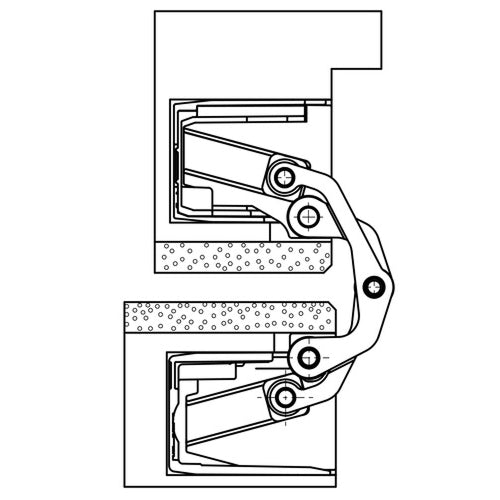

  • Simonswerk Tectus TE 540 3D A8 3-way adjustable concealed door hinge technical diagram and dimensions

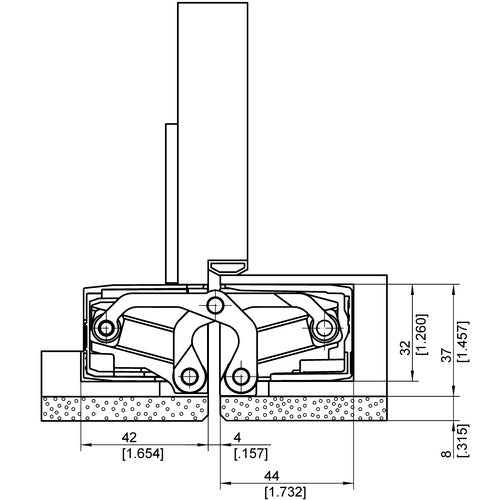

  • Simonswerk Tectus TE 540 3D A8 3-way adjustable concealed door hinge technical diagram and dimensions

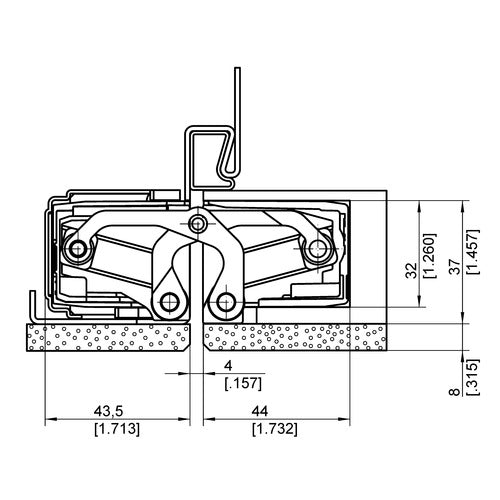

  • Simonswerk Tectus TE 540 3D A8 3-way adjustable concealed door hinge technical diagram and dimensions

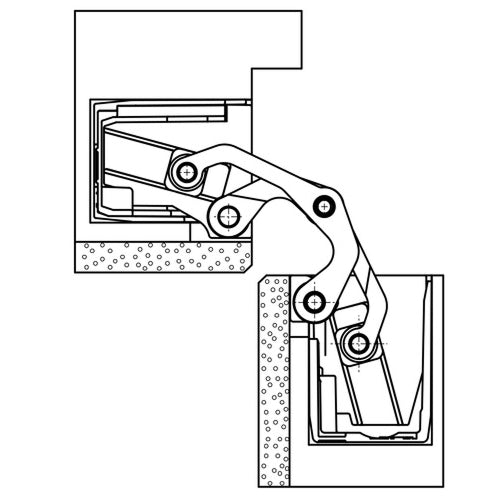

  • Simonswerk Tectus TE 540 3D A8 3-way adjustable concealed door hinge technical diagram and dimensions

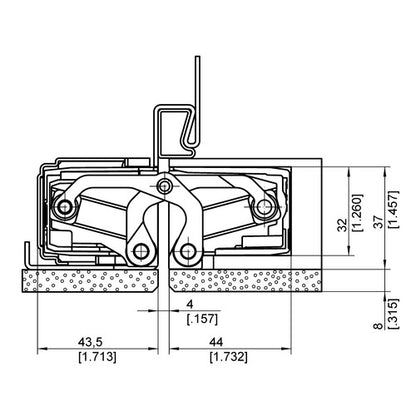

  • Simonswerk Tectus TE 540 3D A8 3-way adjustable concealed door hinge technical diagram and dimensions

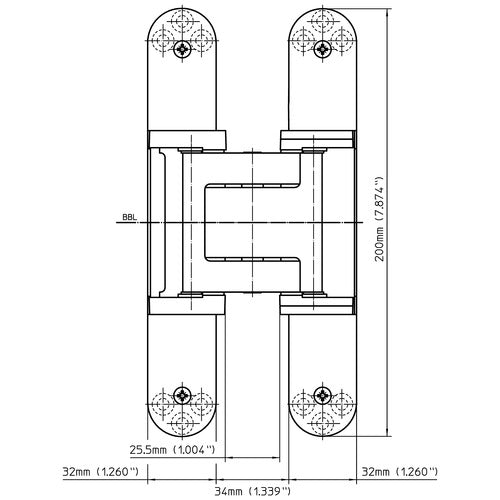

  • Simonswerk Tectus TE 540 3D A8 3-way adjustable concealed door hinge technical diagram and dimensions
1 7

Simonswerk

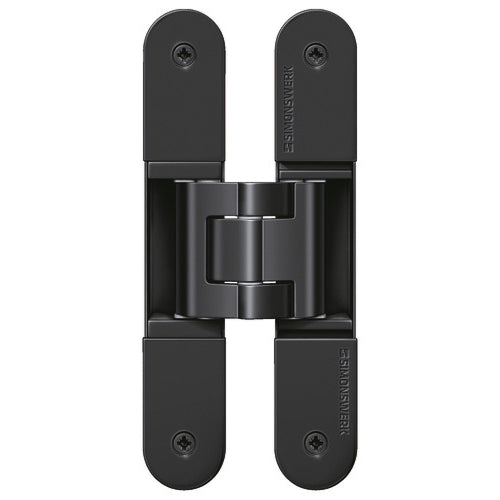

Tectus TE 540 3D A8 Concealed Door Hinge

Tectus TE 540 3D A8 Concealed Door Hinge

$229.00 USD
$229.00 USD
Sale Sold out
Shipping calculated at checkout.
Finish

5 400695 0 12402

Ships in: Ships in 2-3 weeks.

Replace old-school ball bearing hinges with modern Tectus TE 540 3D A8 concealed door hinges.

SIMONSWERK TECTUS hinge TE 540 3D A8 is designed for doors with an add-on cladding layer, such as wood veneer panels.

Product features

  • Claddings up to 8 mm (0.315")
  • Completely concealed hinge system
  • For wood, steel, or aluminum door panels and frames
  • Easily adjustable in three dimensions (side +/- 3.0 mm (0.118"), height +/- 3.0 mm (0.118"), compression +/- 1.0 mm (0.039"))
  • Maintenance-free slide bearings
  • UL listed for 20 minute fire door

Made in Germany

Specifications

Tectus TE 540 E3 A8 Concealed Door Hinge Specs & Technical Details

  • Load capacity: 100 kg (220 lbs)
  • Overall length: 200 mm (7.874")
  • Width (door part): 32 mm (1.260")
  • Width (frame part): 32 mm (1.260")
  • Cutter diameter: 24 mm
  • Collar ring diameter: 30 mm
  • Opening angle: 180°
