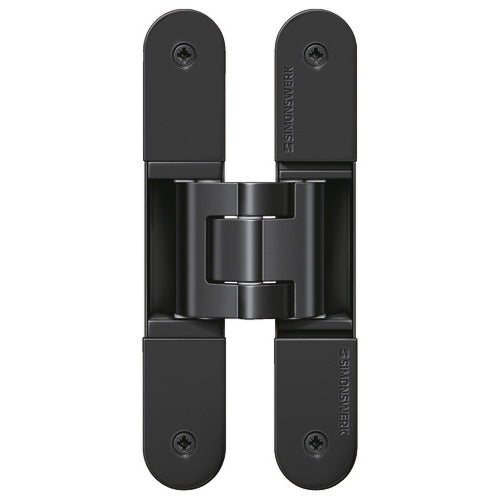

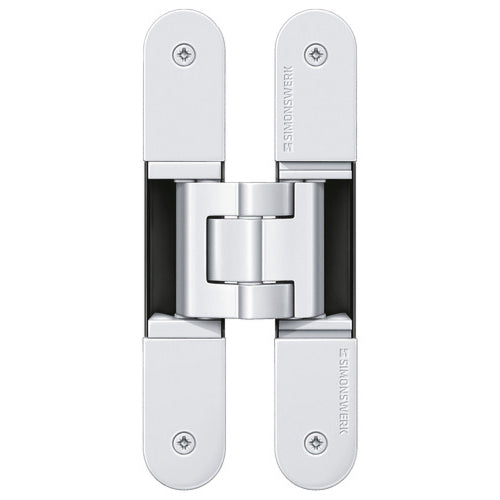

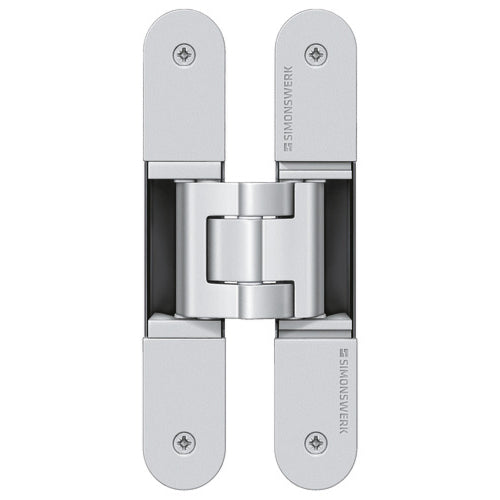

Simonswerk TECTUS 440 3D — More options for flush doors up to 220 lbs (100 kg).
With a load capacity of up to 220 lbs (100 kg), TECTUS 440 3D is specifically designed to bridge the gap between the TE 340 3D (up to 176 lbs/80 kg) and the TE 540 3D (up to 264 lbs/120 kg).

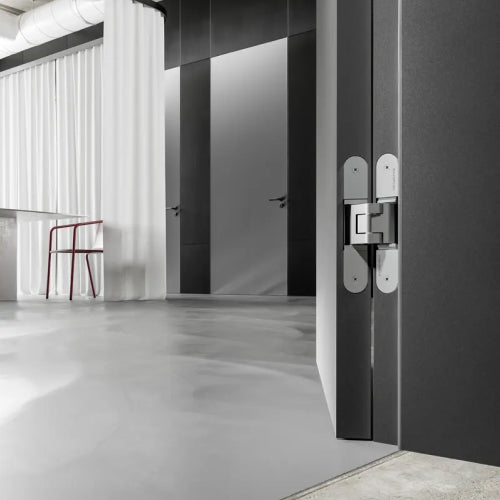

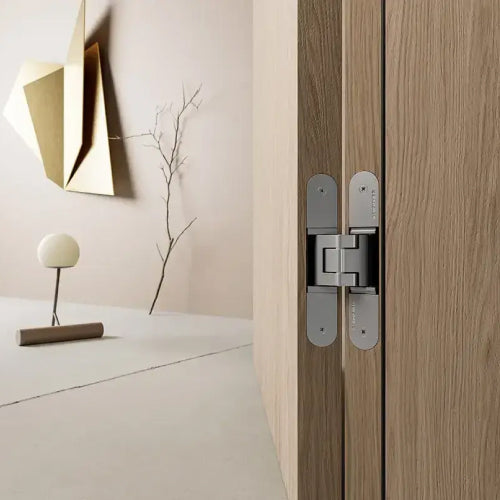

Thanks to its flush and linear design, the completely concealed hinge system TE 440 3D seamlessly integrates with a uniform appearance within the architecture, like all products in the TECTUS brand.
Product features
3-dimensional adjustability: side (+/- 3 mm), depth (+/- 1.5 mm) and height (+/- 3 mm)
suitable for both left and right hand doors

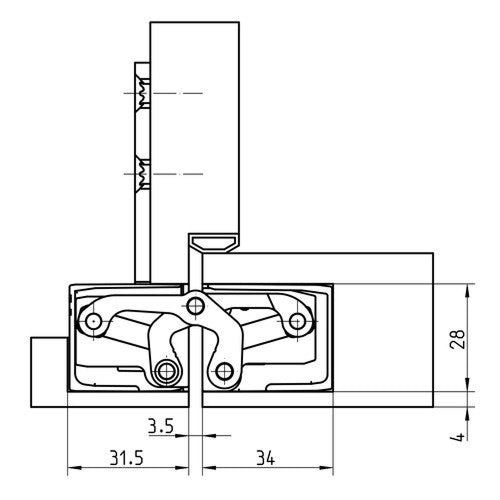

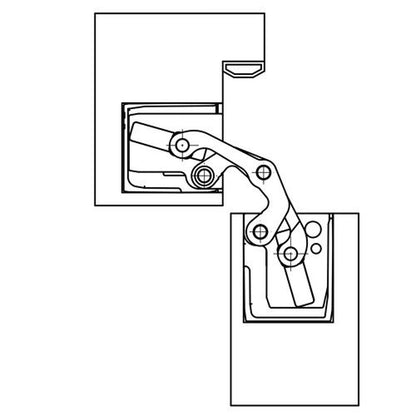

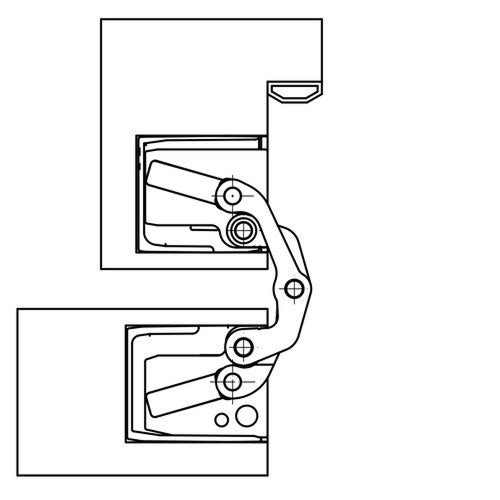

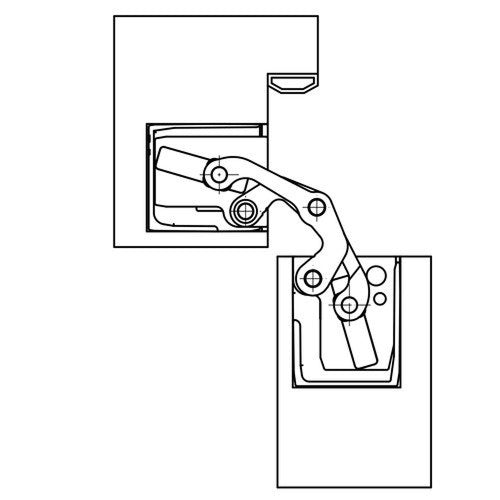

opening angle: 180°

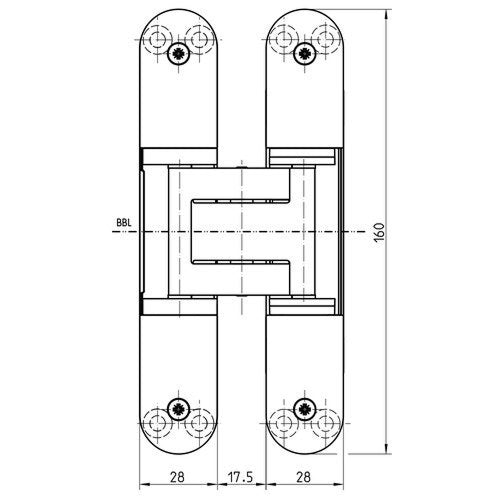

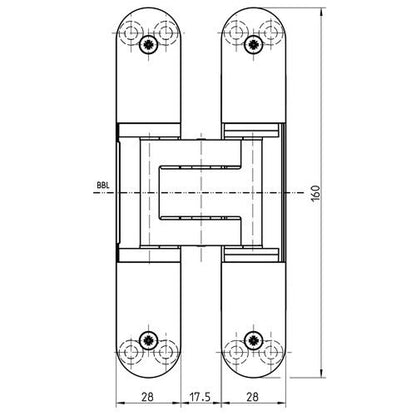

height: 160 mm
milling Ø: 24 mm
max load: 100 kg (leaf 1000 x 2000 mm with 2 hinges; distance between 1st and 2nd hinge reference line: 1435 mm)
may be adjusted without removing the door from its frame
