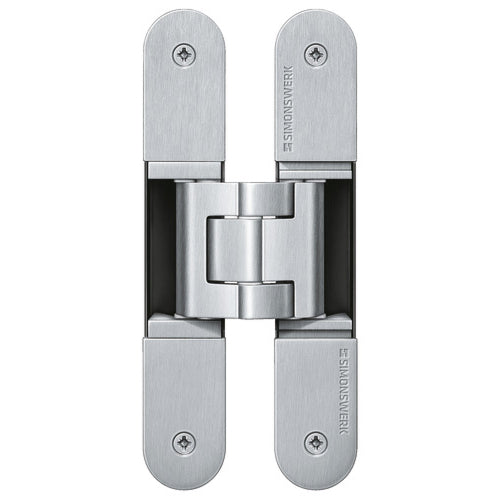

• Simonswerk Tectus TE 340 3D concealed door hinge in the flagship F1 Satin Chrome Look. All adjustable elements are hidden behind matching covers for a clean appearance.

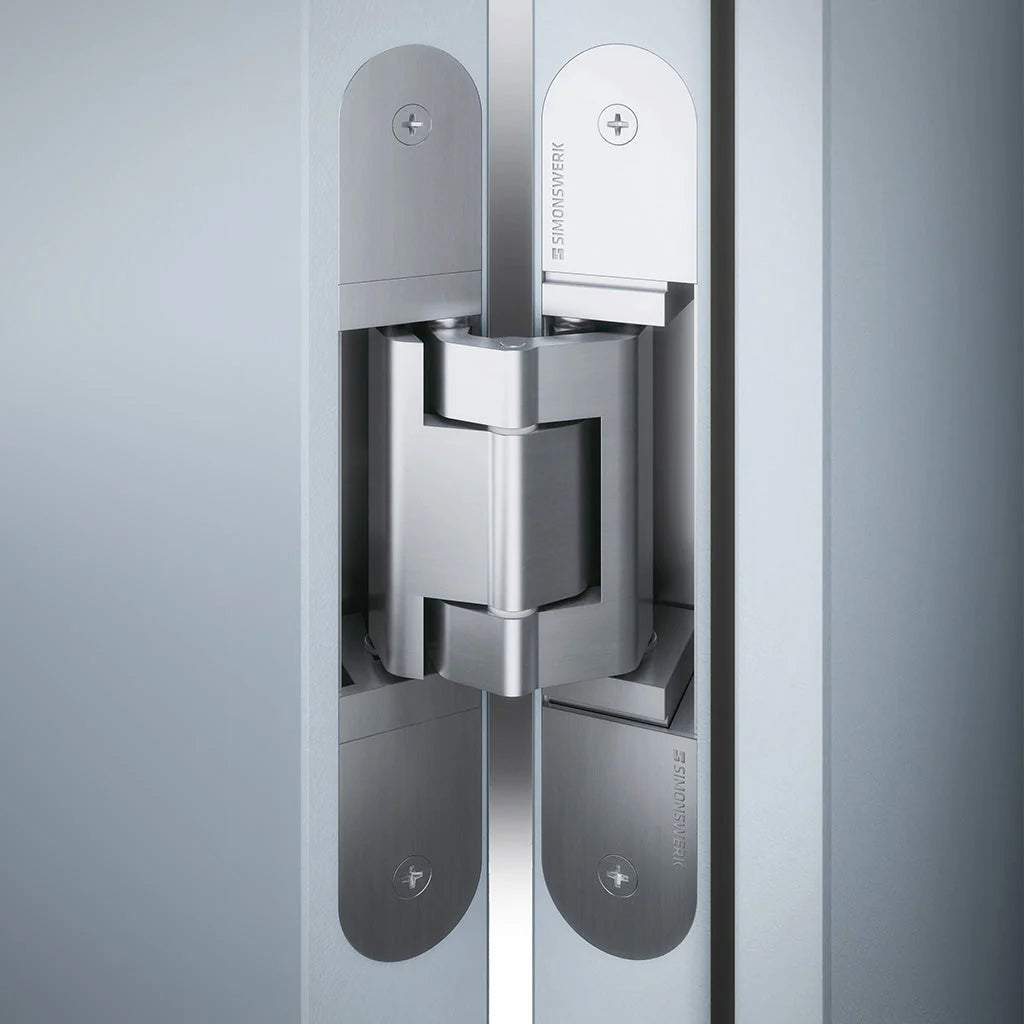

  • Simonswerk Tectus TE 340 3D concealed door hinge installed in a white wood door.

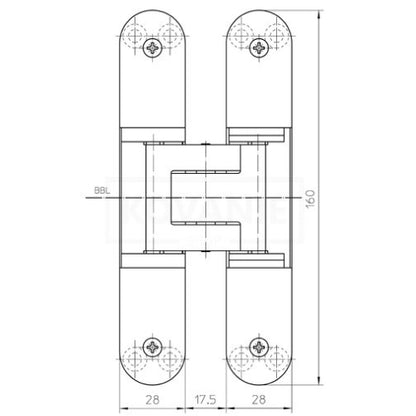

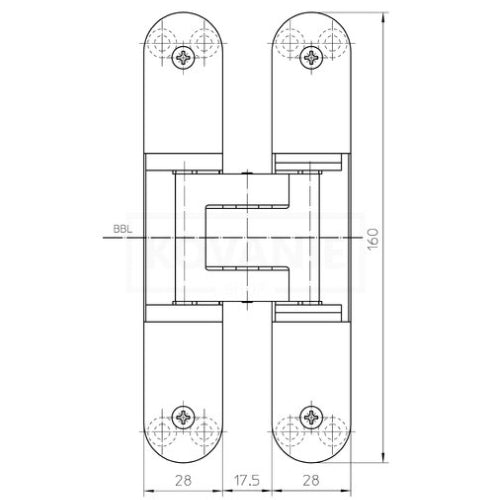

  • Simonswerk Tectus TE 340 3D concealed door hinge - technical diagram (drawing)
1 3

Simonswerk

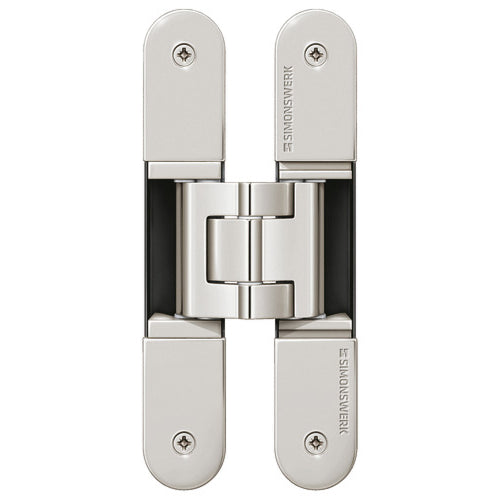

Tectus TE 340 3D Concealed Door Hinge

Tectus TE 340 3D Concealed Door Hinge

$119.00 USD
$119.00 USD
Sale Sold out
Shipping calculated at checkout.

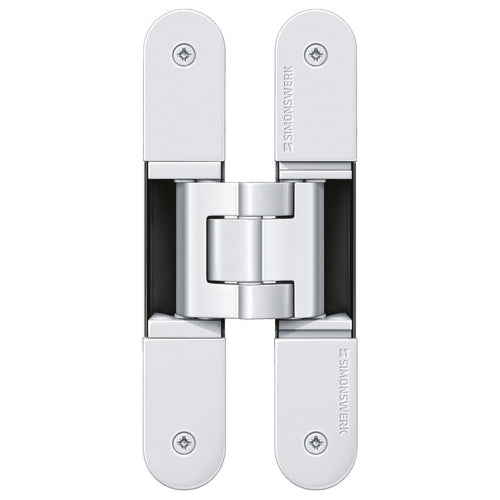

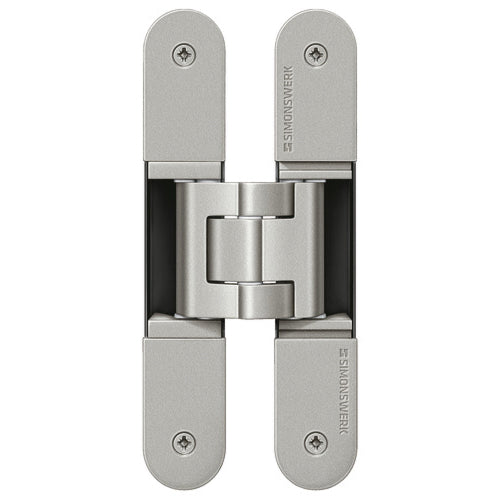

Finish

5 400605 0 12402

Ships in: Ships in 2-3 weeks.

Replace old-school ball bearing hinges with modern Tectus TE 340 3D concealed door hinges.

SIMONSWERK TECTUS hinge TE 340 3D is a completely concealed door hinge for unrebated doors with timber, steel and aluminium frames. UL-certified, with comfortable 3D adjustment, load capacity up to 80 kg, opening angle up to 180°, overall length 160 mm, right hand and left hand applicable, maintenance-free slide bearings, three-dimensionally adjustable: side +/- 3,0 mm, height +/- 3,0 mm, compression +/- 1,0 mm.

Product features

  • Completely concealed hinge system
  • For timber, steel or aluminium frames
  • For unrebated residential and heavy-duty doors
  • Sideways closed hinge body for an aesthetically pleasing mortise appearance
  • Comfortable 3D adjustment (side +/- 3,0 mm, height +/- 3,0 mm, compression +/- 1,0 mm)
  • Maintenance-free slide bearings

Made in Germany

Specifications

Tectus TE 340 3D Technical Specs

  • Load capacity: 80 kg (176 lbs)
  • Overall length: 160 mm
  • Width (door part): 28 mm
  • Width (frame part): 28 mm
  • Cutter diameter: 24 mm
  • Collar ring diameter: 30 mm
  • Opening angle: 180°
