Simonswerk

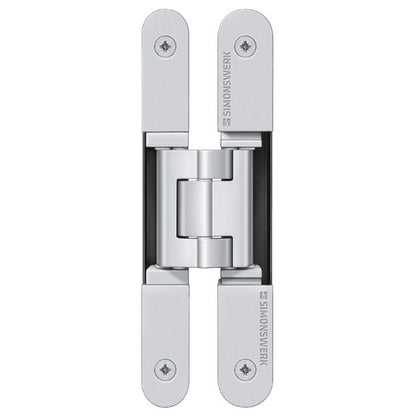

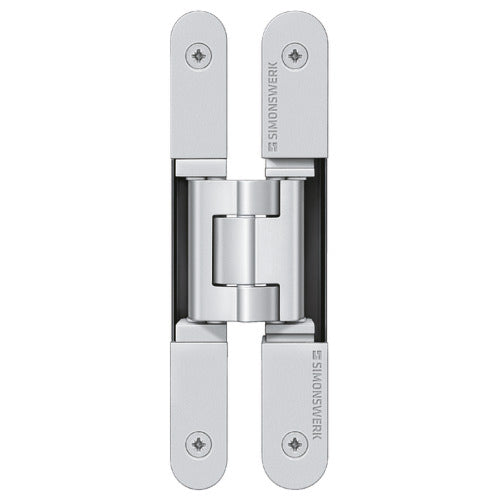

Tectus TE 240 3D Concealed Door Hinge
Tectus TE 240 3D Concealed Door Hinge
Regular price
$99.00 USD
Regular price
Sale price
$99.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Replace old-school ball bearing hinges with modern Tectus TE 240 3D concealed door hinges.
SIMONSWERK TECTUS hinge TE 240 3D is a completely concealed hinge for unrebated and rebated flush doors with timber, steel and aluminium frames. Load capacity up to 60 kg, opening angle up to 180°, overall length 155 mm, right hand and left hand applicable, maintenance-free slide bearings, three-dimensionally adjustable: side +/- 3,0 mm, height +/- 3,0 mm, compression +/- 1,0 mm.
Product features
- Completely concealed hinge system
- For timber, steel or aluminium frames
- For unrebated and rebated flush residential doors
- Sideways closed hinge body for an aesthetically pleasing mortise appearance
- Comfortable 3D adjustment (side +/- 3,0 mm, height +/- 3,0 mm, compression +/- 1,0 mm)
- Maintenance-free slide bearings

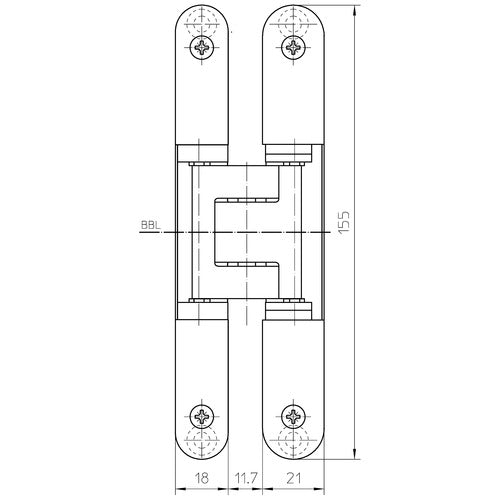

Technical details
| Load capacity | Overall length | Width (door part) |
Width (frame part) |
| 60 kg | 155 mm | 18 mm | 21 mm |
| Cutter diameter | Collar ring diameter | Opening angle | |
| 16 mm | 30 mm | 180° |
