Portapivot

Stealthpivot XL Concealed Pivot Door Hinge

Stealthpivot XL Concealed Pivot Door Hinge

$599.00 USD
$599.00 USD
Sale Sold out
Shipping calculated at checkout.

STEALTH_PIVOT-XL-ESSENTIAL

Ships in: Ships in 1-2 weeks.

Stealthpivot XL is created as the ideal pivot hinge setup for larger and heavier pivot doors up to 150 kg or 330 lbs.

Stealthpivot is designed to be mounted on top of a finished surface without the need for any built-in fixtures.

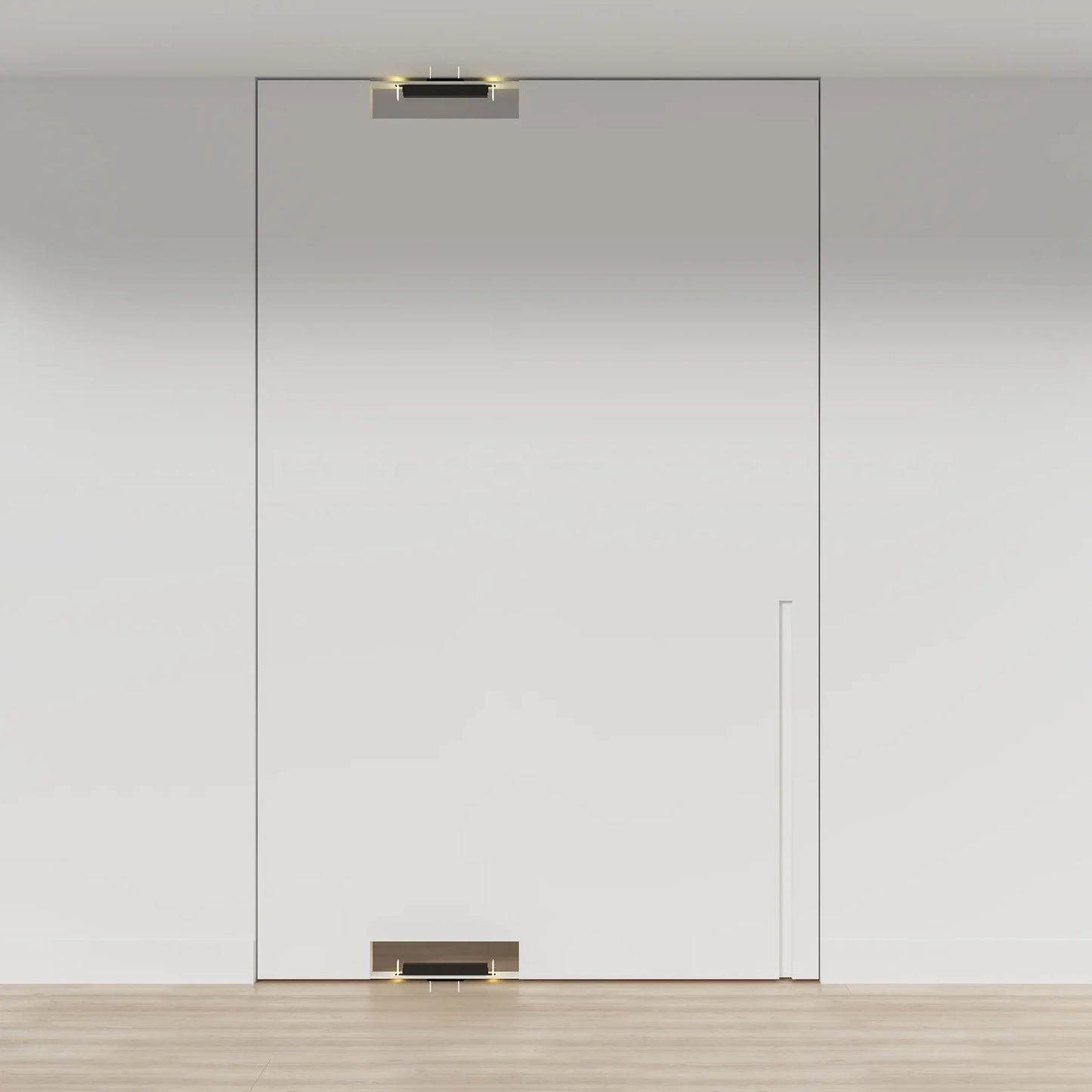

The pivot hinge is fitted inside the door and therefor remains invisible after installation, hence the name 'Stealth pivot'.

The kit content you’ll receive includes everything you need. Our manuals guide you through the step-by-step assembly and installation process.

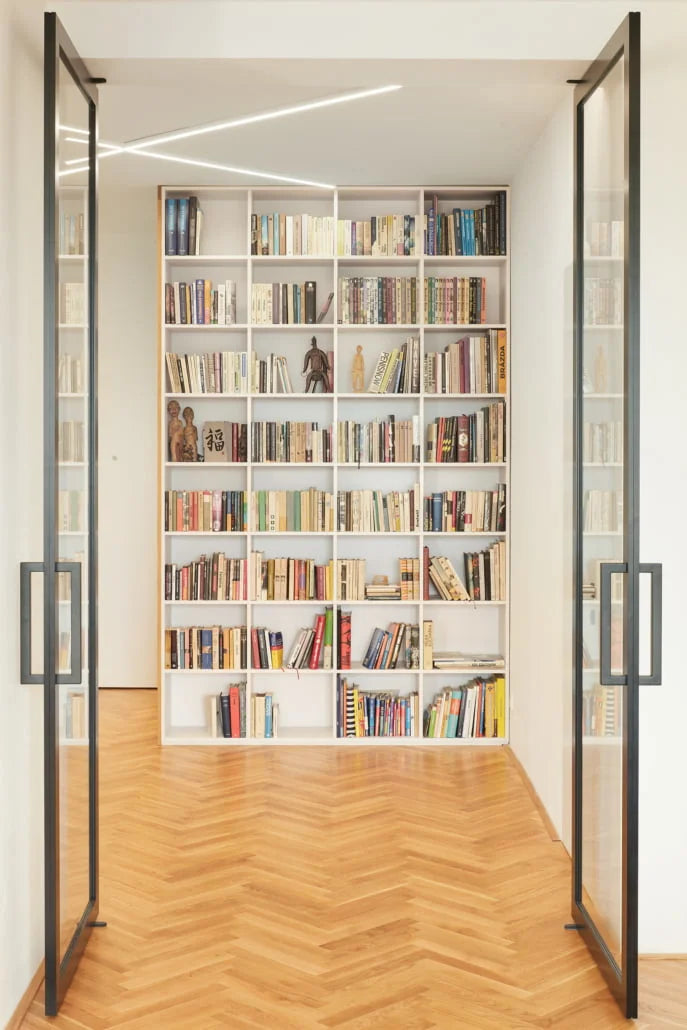

Get glass pivot doors

Interested in ready-to-install glass pivot doors or full-height double pivot doors with Stealthpivot hinges? Visit https://www.angelbau.com/digero-glass-partition-wall-system and contact Angelbau.

Made in Belgium

Specifications

  • Designed for doors up to 150 kg (330 lbs)
  • Fitted with 480N dampers
  • L 270 mm x H 33 mm x W 25 mm
  • Axis point >1250 mm 1/4 up to 1/2
  • Axis point <1250 mm 150 mm up to 1/2 width of door
  • Self-closing technology
  • -90° | 0° | +90° open/hold positioning
  • Configurable swing operation 180° or 360°
  • Maintenance free design
  • Designed for indoor residential use
  • 200.000x cycles tested

Product downloads

View full details

Innovations by Portapivot

Portapivot, headquartered in Belgium, is the go-to choice for premium pivot hinges for interior doors. The company developed a minimalistic pivot hinge system called Stealthpivot, blending an adjustable self-closing gas damper system with an invisible appearance.

Over the years, the Portapivot concealed pivot hinge system has received numerous architectural and design awards, including the Red Dot Award 2015, the IF Award 2017, the Architizer A+ Awards 2018, and the Archiproducts Design Awards 2021.

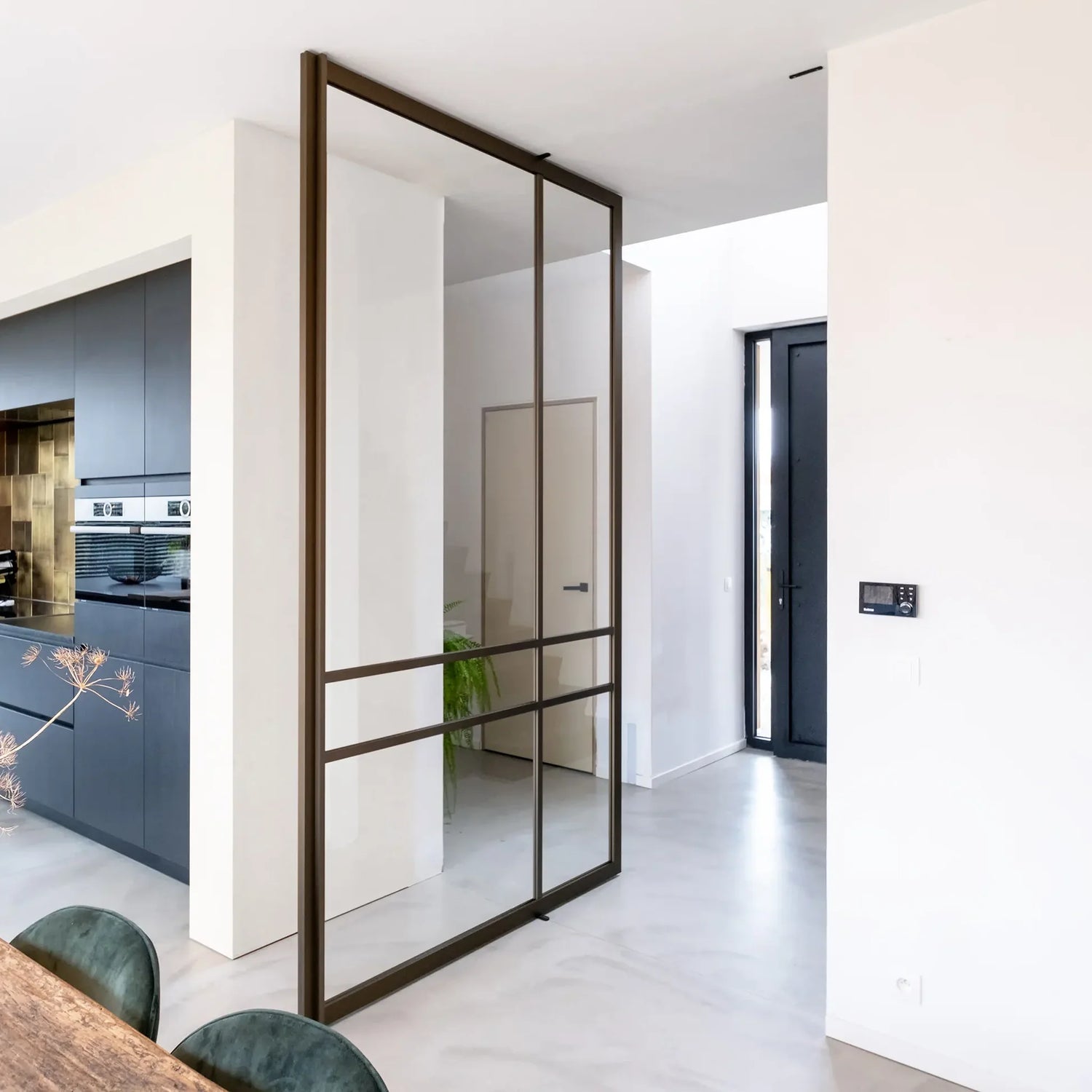

Universal by design, the Portapivot Stealthpivot works with wooden doors as well as aluminum-frame glass doors, and is available in North America from Angelbau.
