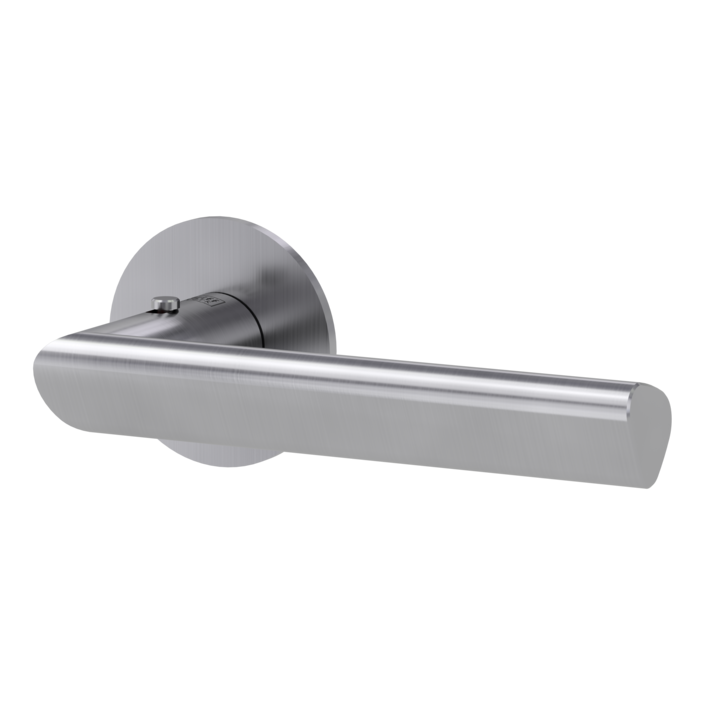

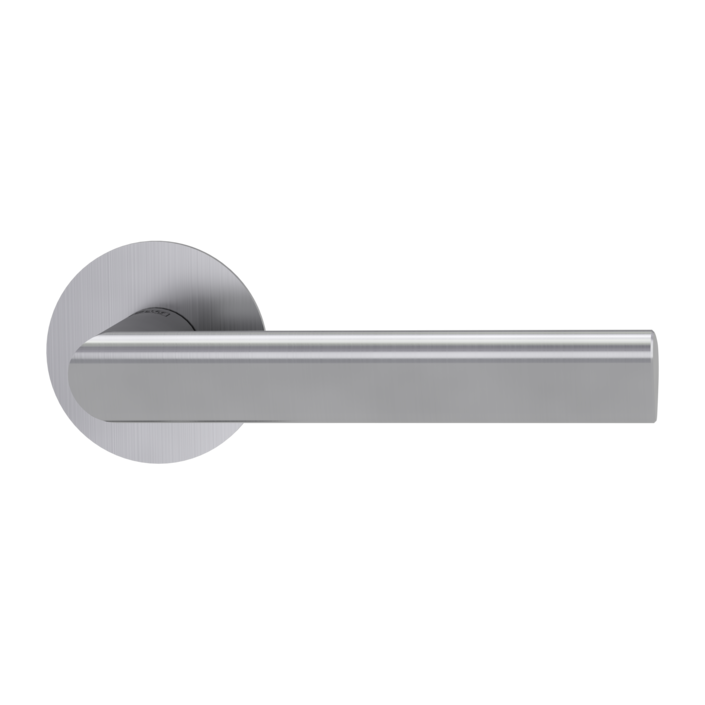

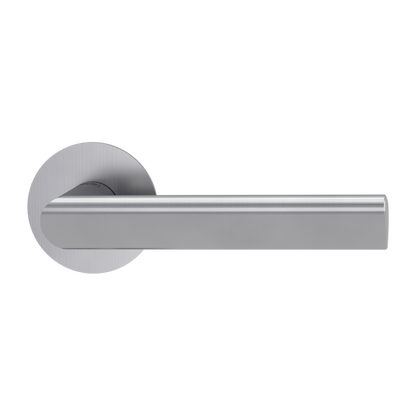

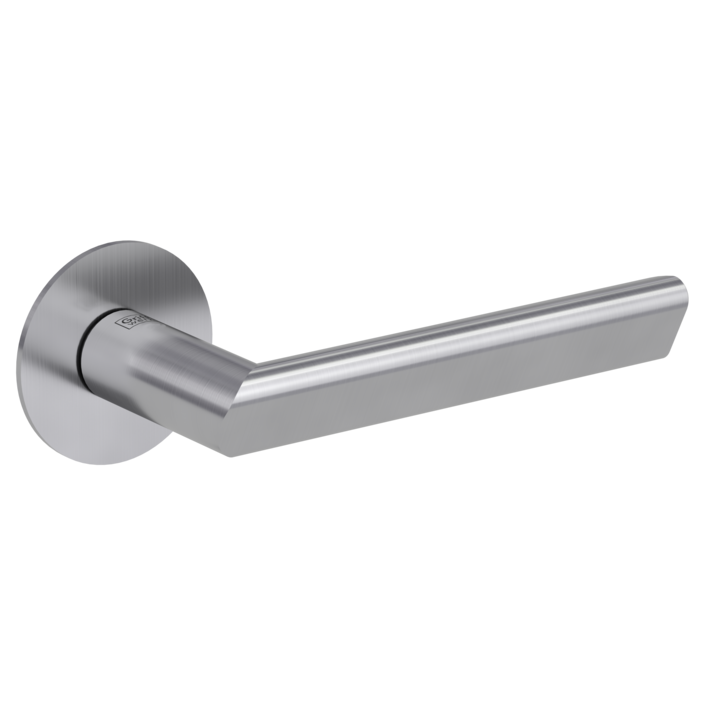

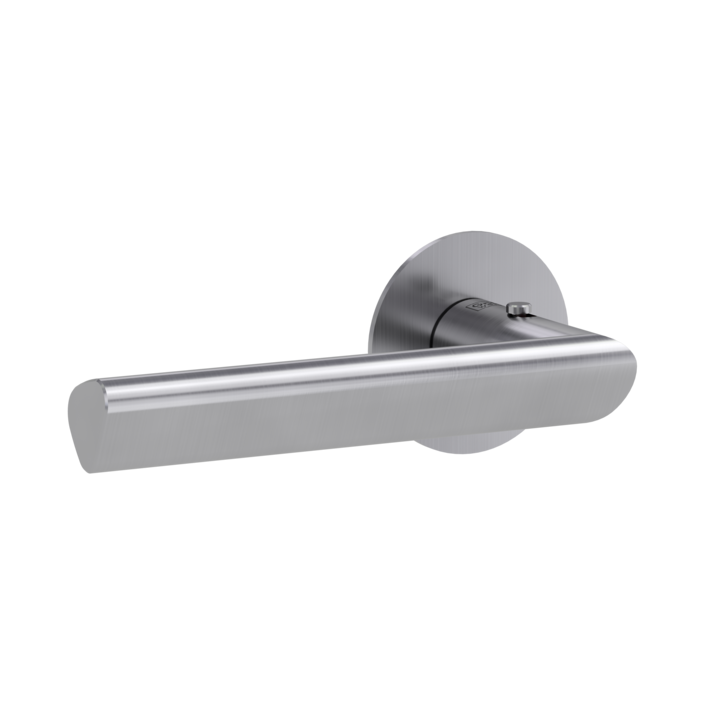

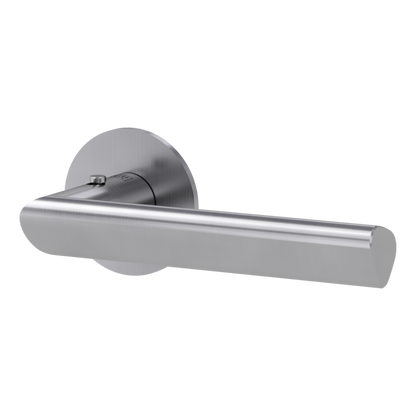

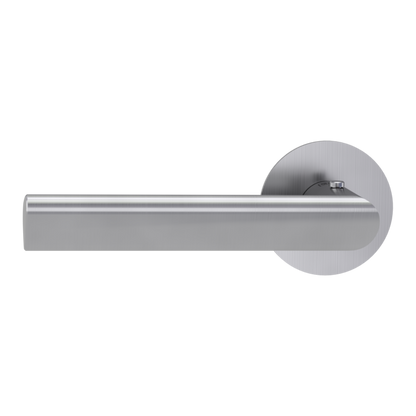

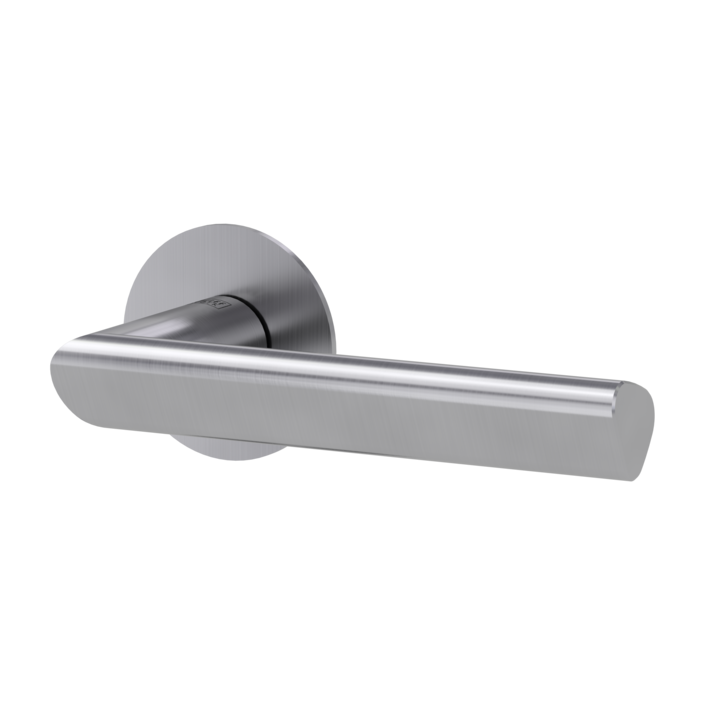

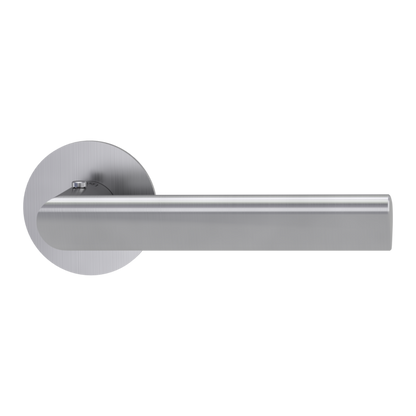

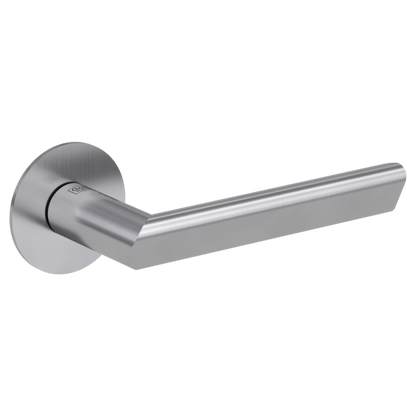

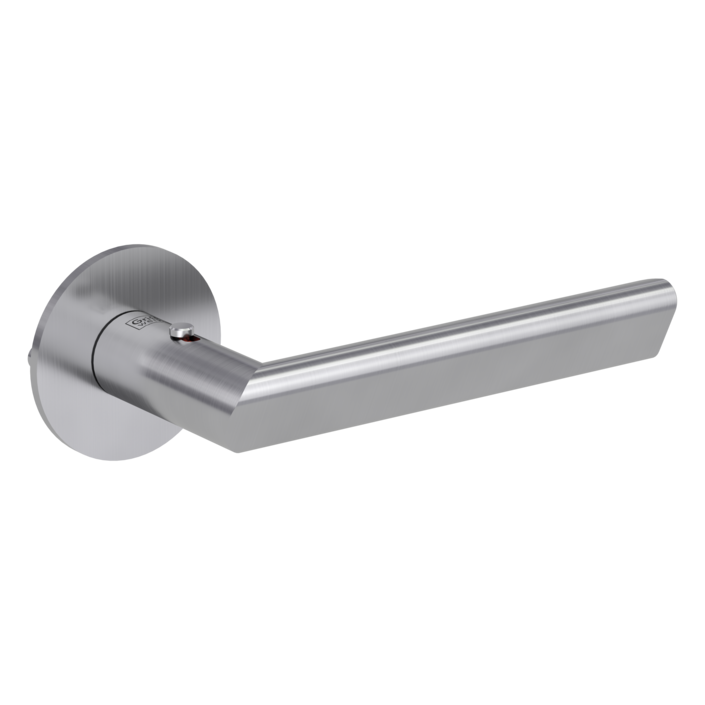

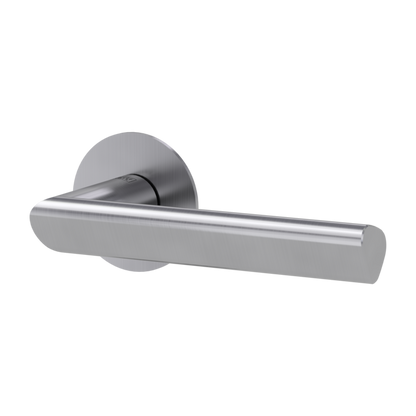

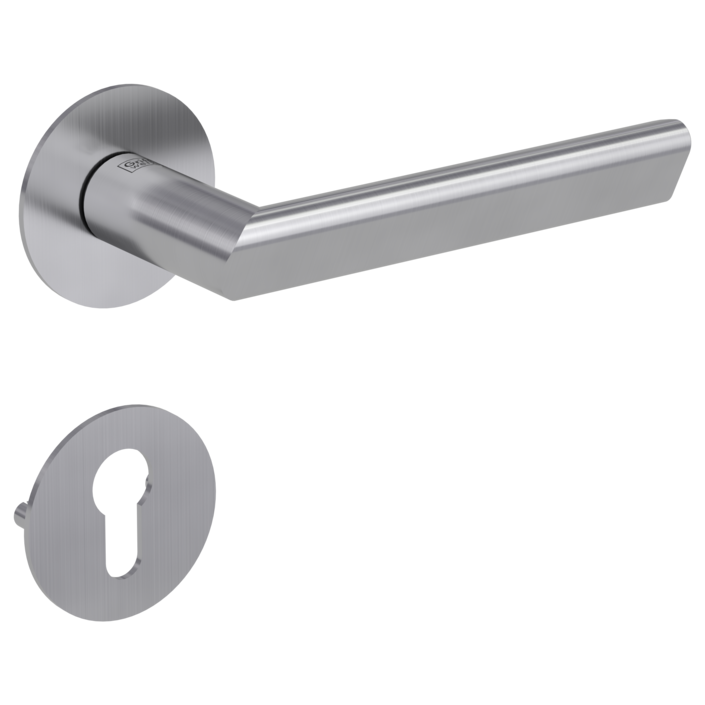

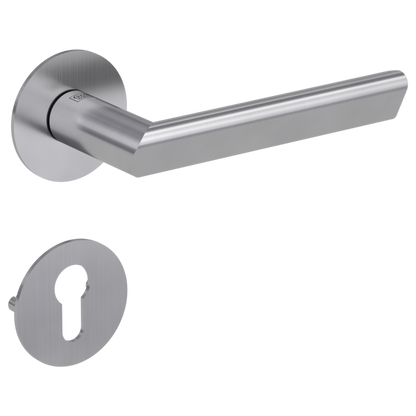

Griffwerk TRI 134 Piatta S
Griffwerk TRI 134 Piatta S
SKU:134502871
Couldn't load pickup availability
When designing the Griffwerk TRI 134 handle profile, we took a close look at the cavity that the hand forms when gripping. In the process, we realized that this cavity resembles neither a circle, an oval nor a rectangle, but rather has the shape of a gently rounded triangle.
Based on this insight, we developed a completely new handle profile with three sides in Blaustein. The result is Griffwerk TRI 134, a door handle that is literally "made for the hand". Its ergonomic design not only offers unique comfort, but also gives your door a timeless and elegant character. Experience the perfect combination of functionality and design with Griffwerk TRI 134.
Benefits
- Lever handle swivel-mounted on two-part stainless steel rose with integrated retaining mechanism
- In the handle integrated one-sided locking mechanism with emergency release, usable with standard mortise lock
- Slide bearing for durable, smooth, silent and maintenance-free operation
- Attached with M4 screws
- Concealed grub screw inserted from below and secured with thread lock
- 8mm square spindle
- Built-in lever handle with no visible screws/fixing or removal holes in the visible surface

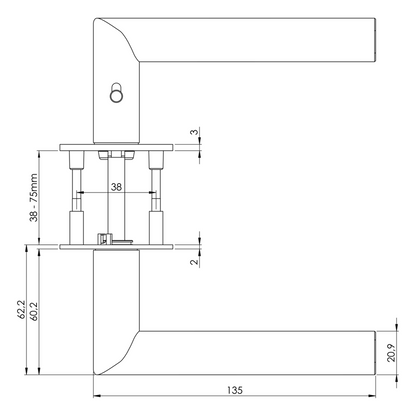

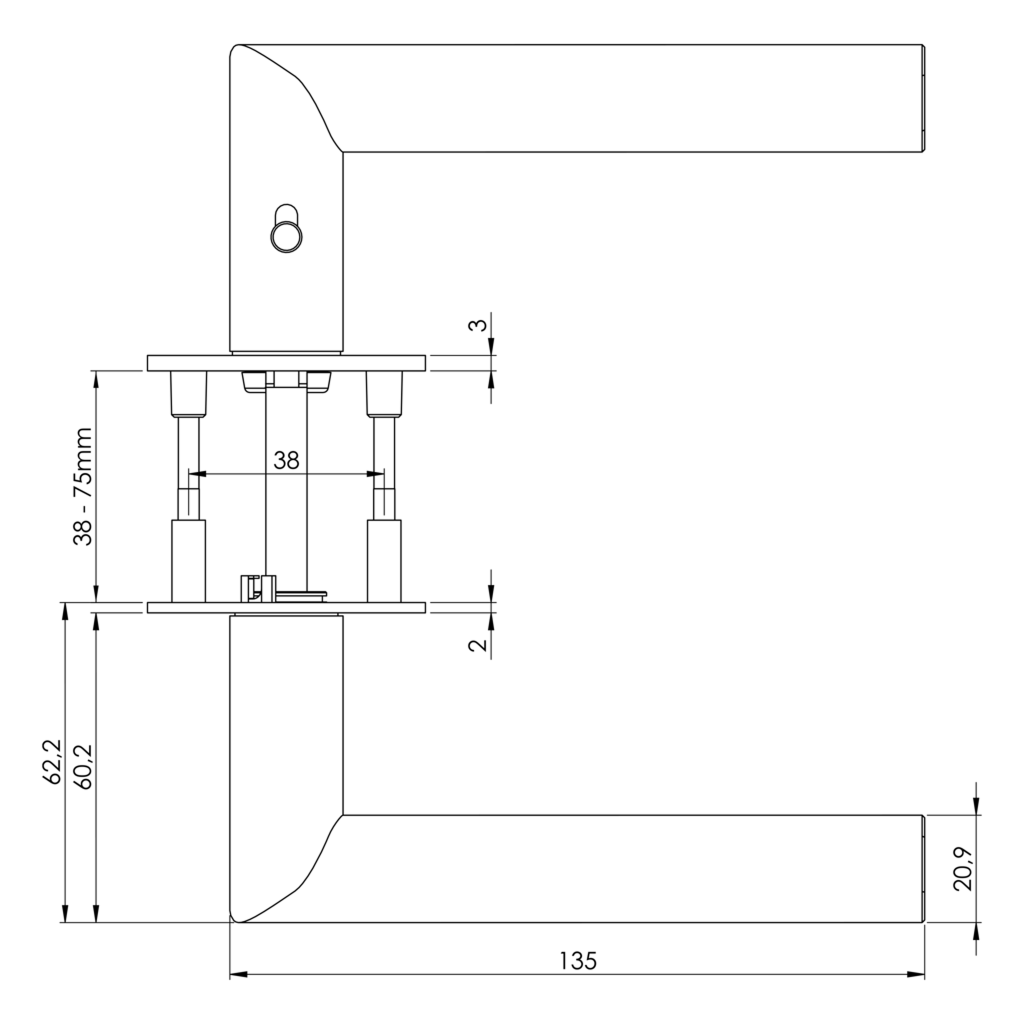

- Standard door thickness: 38-45 mm, expandable via
accessory sets up to 75 mm
Direction

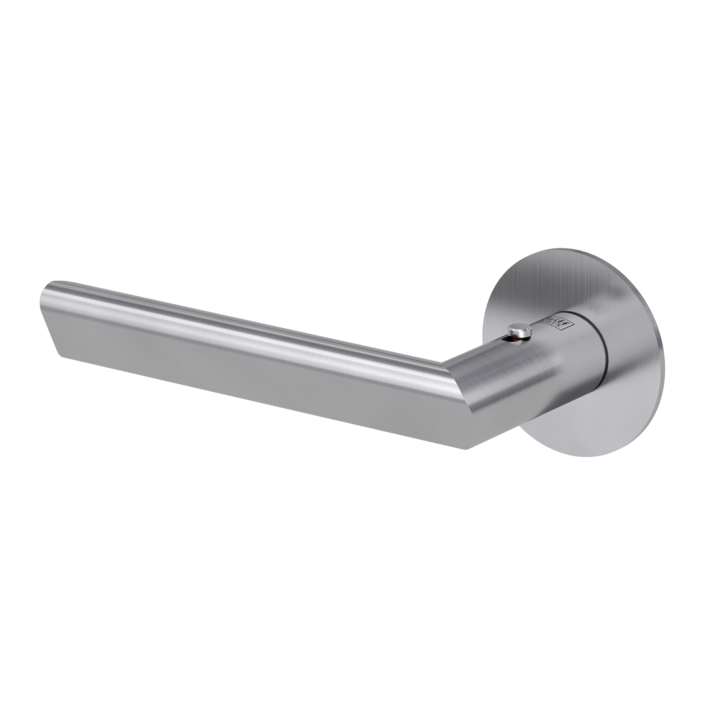

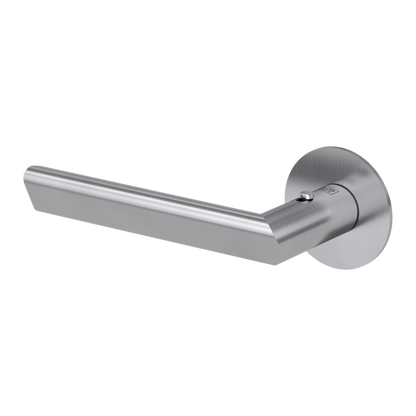

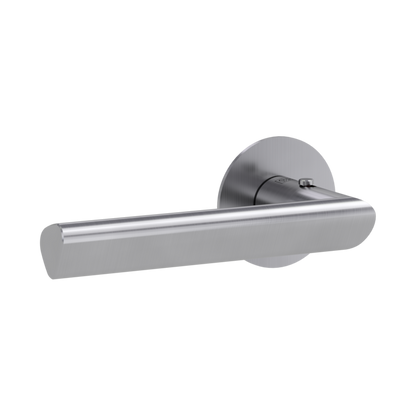

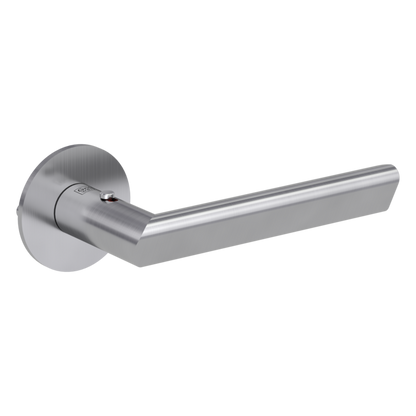

Direction is important for smart2lock (Privacy function) variants. Passage version is reversible.
Made in Germany
Specifications
Specifications
Product downloads
Product downloads
Griffwerk Elements of Perfection
Griffwerk, based in Blaustein, Germany, has built its reputation on combining engineering and minimalist design in door hardware, especially through innovations like Smart2Lock, which integrates the privacy lock into the handle itself for a cleaner look and one-handed use.
The design collection covers a wide range of door handles to suit every design — from clear, geometric shapes for modern rooms to gently curved handles for classic environments.
To meet the exacting design standards of world-class architects and interior designers, Griffwerk offers a variety of finish options, including stainless steel, graphite black, cashmere gray, and velvet gray.
