Griffwerk Avus One

European Architectural Hardware Made In Germany

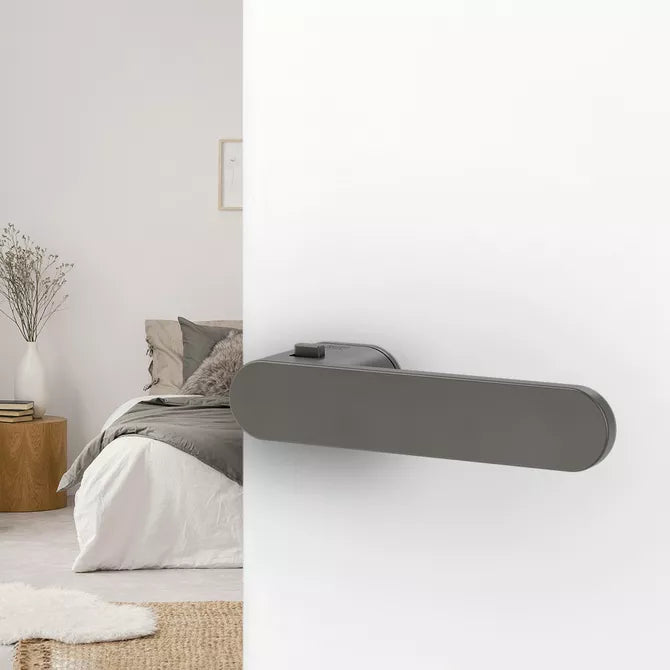

Griffwerk ONE is a door hardware design concept without rosettes. ONE stands for maximum reduction and is the programmatic intent for this design line. The AVUS ONE door handle dispenses completely with rosettes. Thanks to specially developed technology, the handle now sits singularly on the door leaf. Nevertheless, it fits on doors with standard locks. In the version with a locking mechanism, this has been integrated into the neck of the handle and is thus positioned within thumb reach. A handle design for the highest demands in two shape variants.

Available Finishes

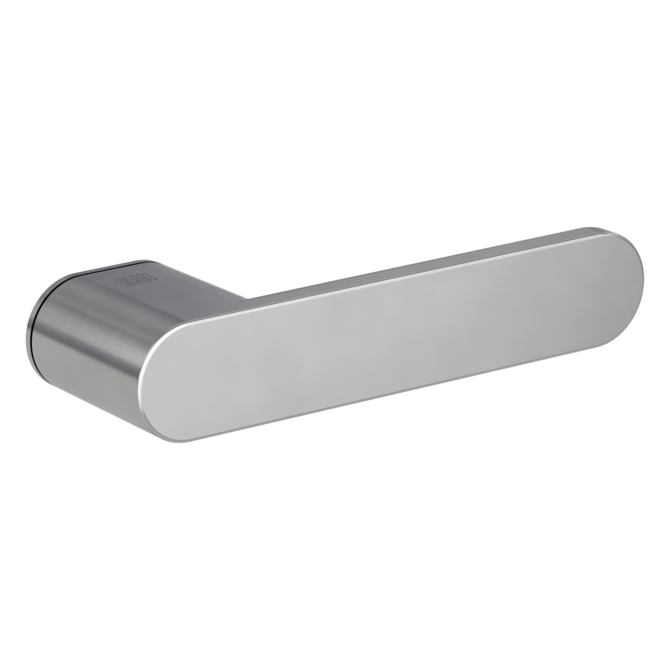

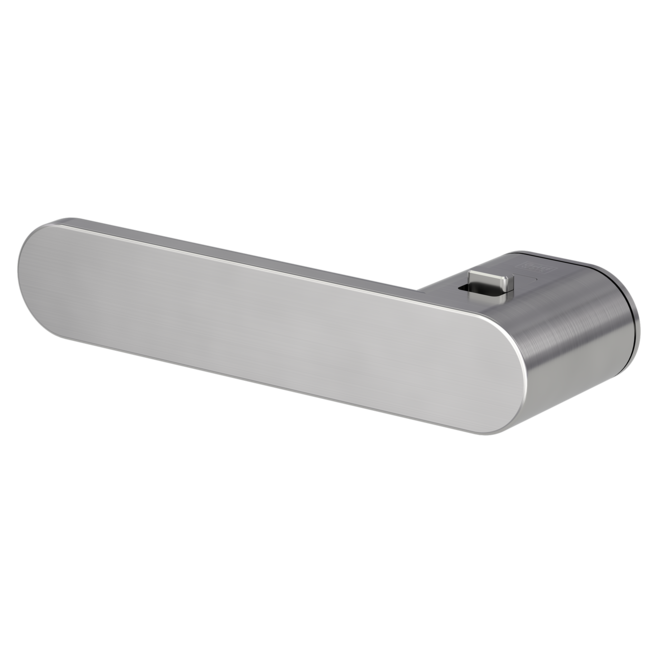

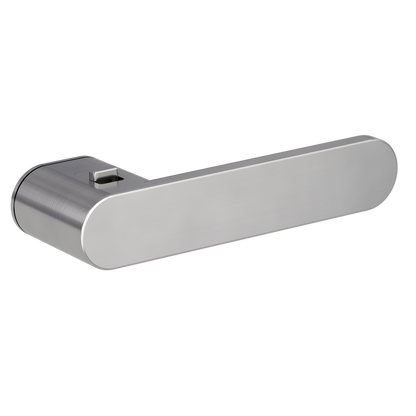

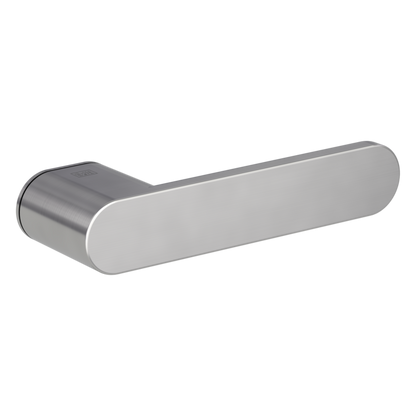

• Velvet grey

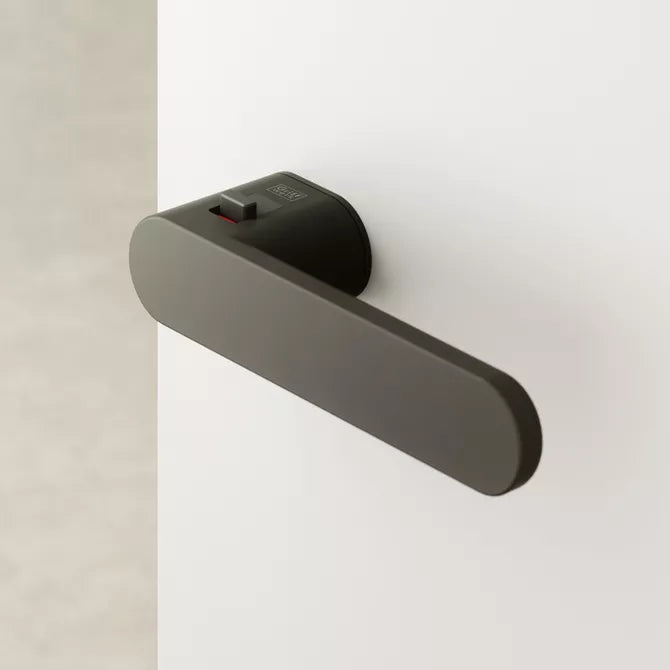

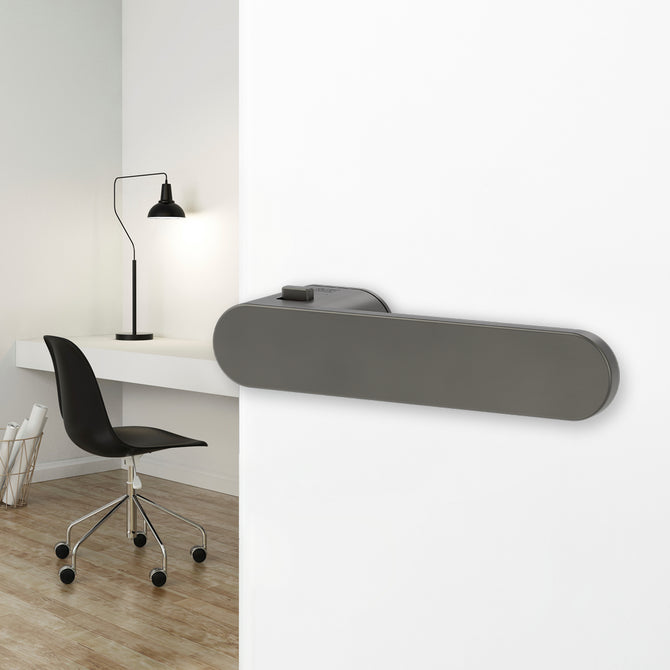

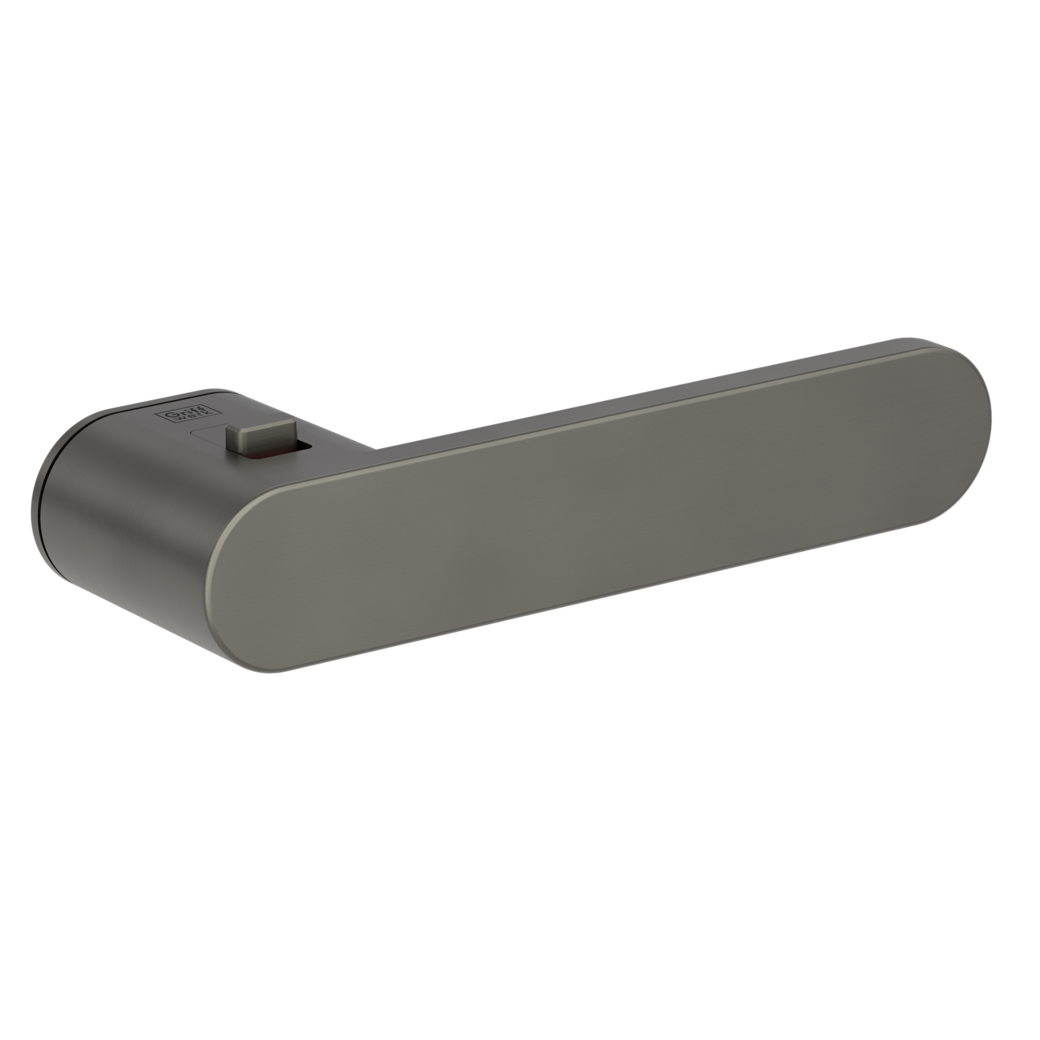

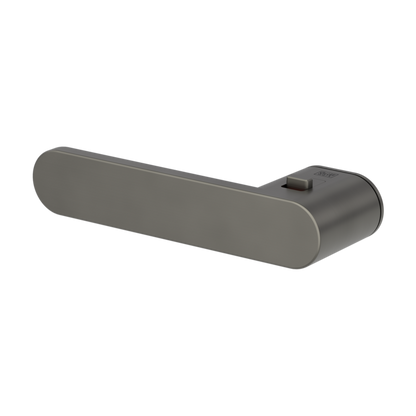

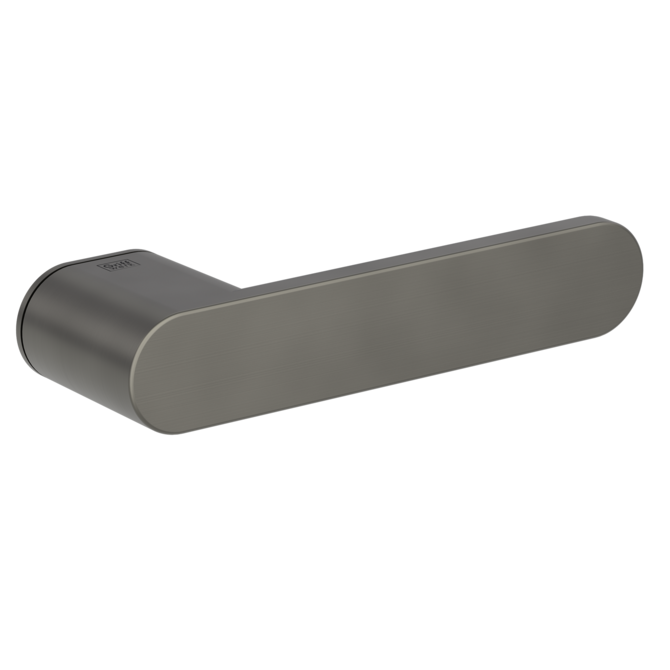

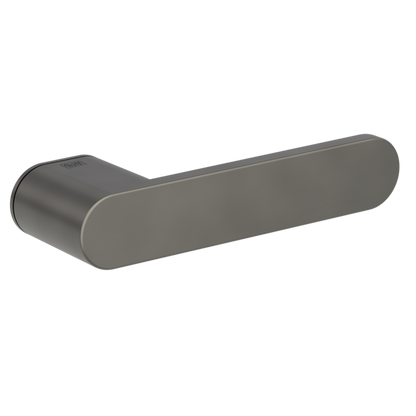

• Cashmere grey

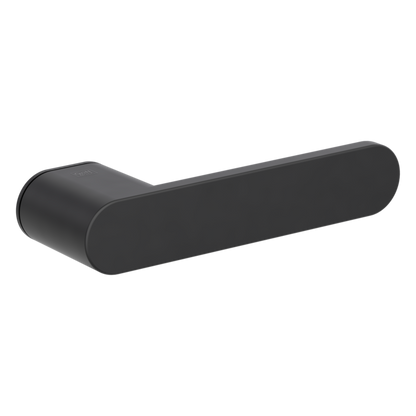

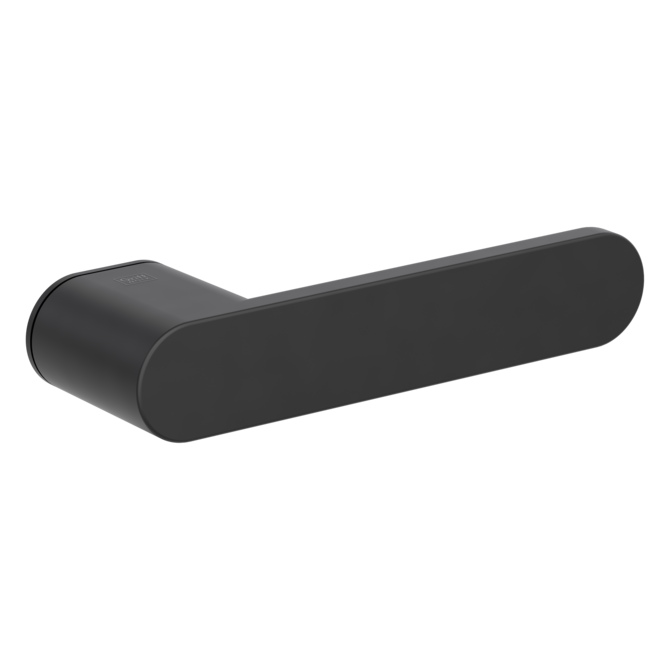

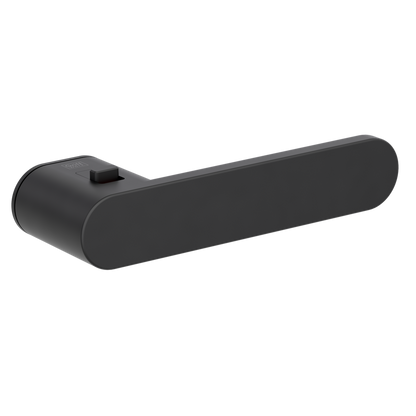

• Graphite black

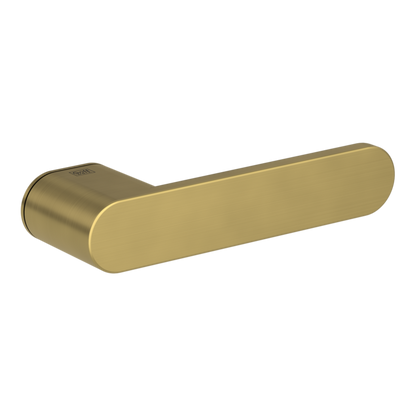

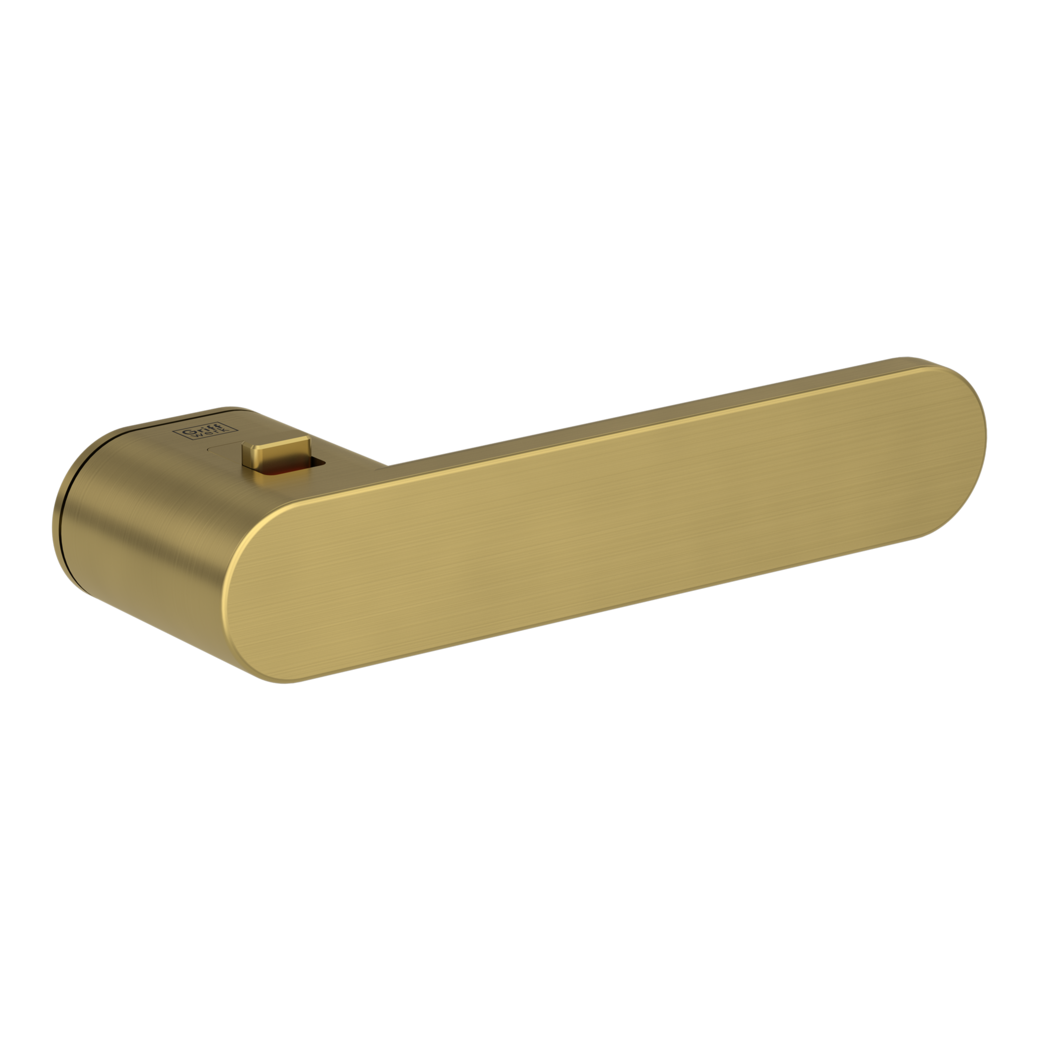

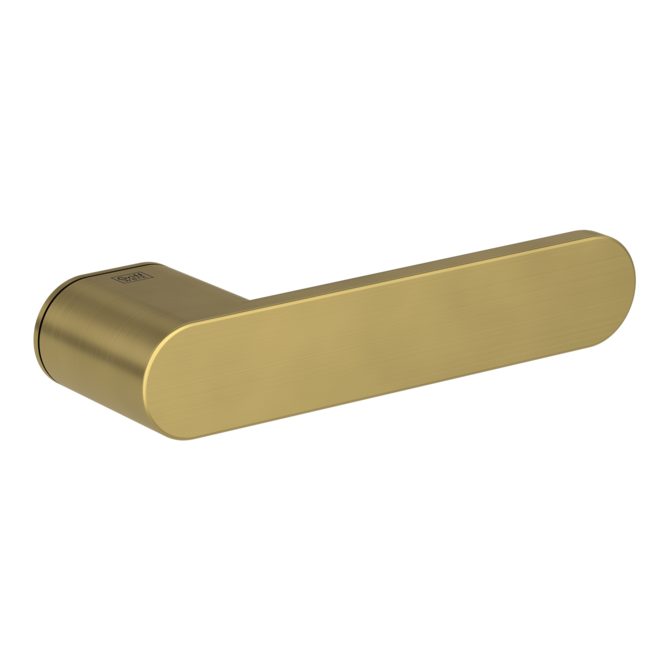

• Brushed gold

Specifications

• Lever handle one-sided swivel-mounted on concealed rose with
  integrated retaining mechanism

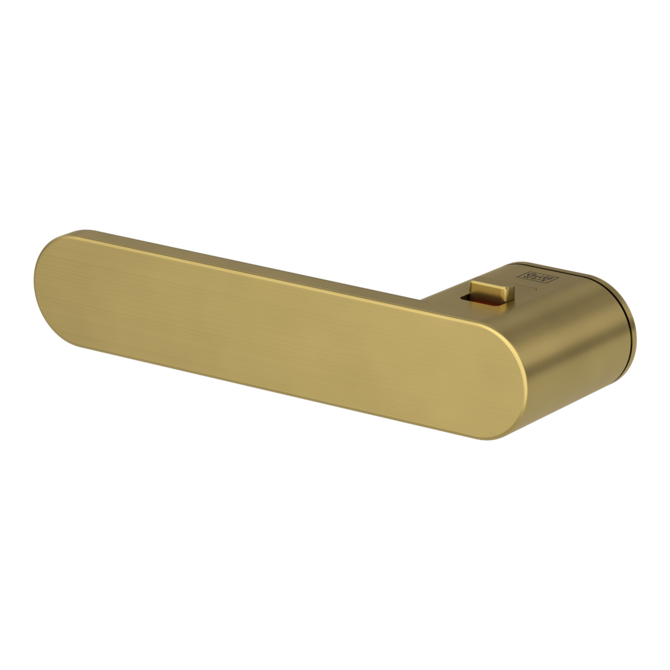

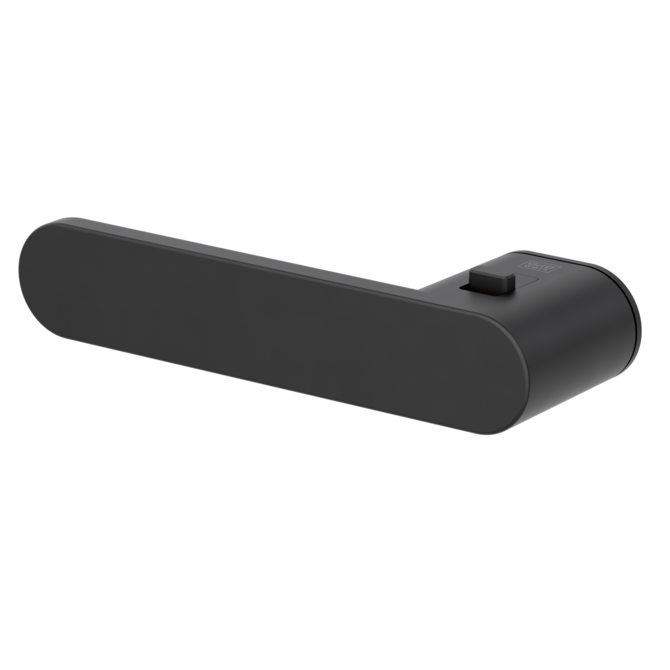

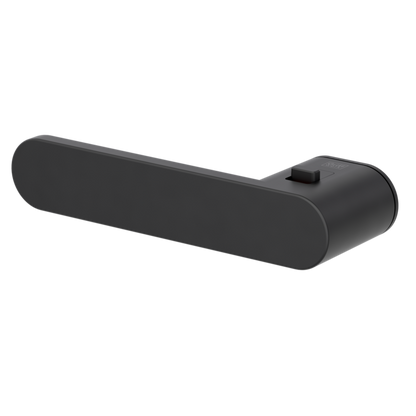

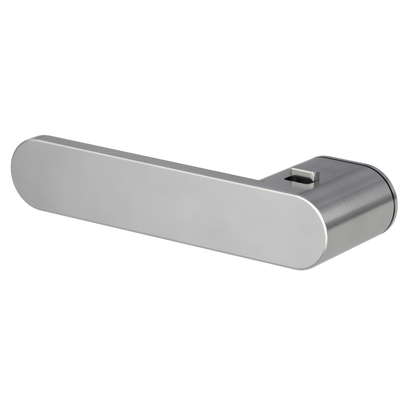

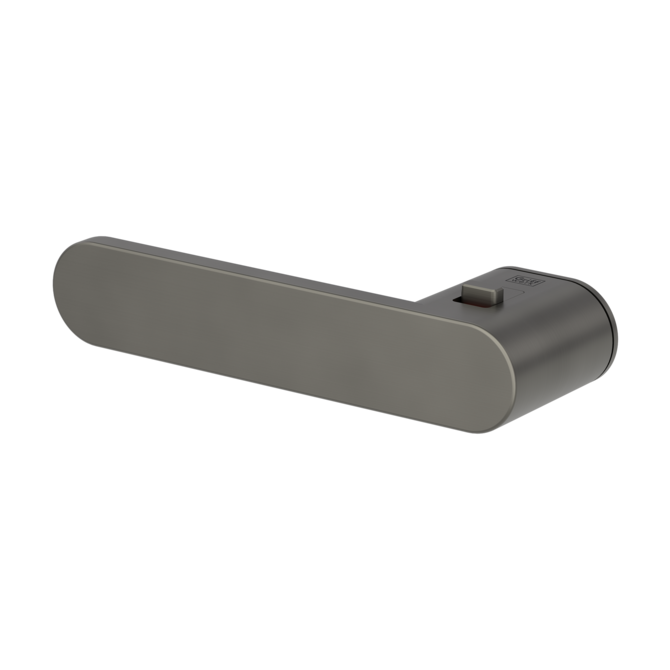

• In the handle integrated one-sided locking mechanism with emergency release, usable with standard mortise lock
• Slide bearing for durable, smooth, silent and maintenance-free operation
• One-sided attached with M4 screws
• Concealed grub screw inserted from below and secured with thread lock
• 8mm square spindle
• Built-in lever handle with no visible screws/fixing or removal holes in the visible surface
• Grip inclination adjustable
• Standard door thickness: 38-45mm
• Larger door thicknesses possible via extensions sets

Direction

Download

Griffwerk One Collection Mounting Instructions (PDF)

Griffwerk Avus One Specifications & Dimensions (PDF)
